Hinges & Mounting Plates > Hinges - Salice > Mounting Plates, DOMI®

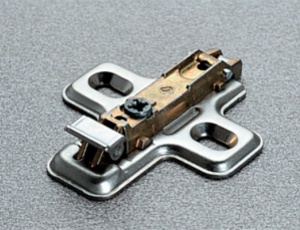

Salice DOMI Mounting Plates
Salice DOMI Mounting Plates

Features AAR: Automatic Adjustment Response. A quick turn of the frontal adjustment cam or vertical adjustment cam automatically positions the hinge - eliminating the need for manual positioning.

  • 0mm - For 3/4" side panel - Full overlay
  • 2mm - For 3/4" side panel - 11/16" overlay
  • 3mm - For 5/8" side panel - Full overlay
  • 6mm - For 1/2" Overlay and Partial overlay
  • 9mm - For 3/4" side panel - Half overlay
  • 18mm - Inset

Note: The above is based on using Full overlay hinges

Salice DOMI Mounting Plates Additional Information

Product Specifications
Please select from the Options below
OptionsOur PriceBuy
Type: Steel
Attach: 37x32 Screw-in
Thick: 0mm
UOM: EACH		 $0.80
Type: Steel
Attach: 37x32 Screw-in
Thick: 3mm
UOM: EACH		 $0.84
Type: Die cast
Attach: 37x32 Screw-in
Thick: 18mm
UOM: EACH		 $2.90
Type: Steel
Attach: 37x32 Screw-in - Euro screw pre-mounted
Thick: 0mm
UOM: EACH		 $0.94
Type: Steel
Attach: 37x32 Screw-in - Euro screw pre-mounted
Thick: 3mm
UOM: EACH		 $0.99
Type: Steel
Attach: 37x32 Screw-in - Expansion dowels 5mm
Thick: 3mm
UOM: EACH		 $1.24
Type: Die cast
Attach: 21+32 Screw-in - Euro screw pre-mounted
Thick: 0mm
UOM: EACH		 $1.42
Type: Die cast
Attach: 37x32 Screw-in
Thick: 0mm
UOM: EACH		 $1.23
Type: Die cast
Attach: 37x32 Screw-in
Thick: 2mm
UOM: EACH		 $1.48
Type: Die cast
Attach: 37x32 Screw-in
Thick: 3mm
UOM: EACH		 $1.29
Type: Die cast
Attach: 37x32 Screw-in
Thick: 6mm
UOM: EACH		 $1.72
Type: Die cast
Attach: 37x32 Screw-in
Thick: 9mm
UOM: EACH		 $2.38
Type: Die cast
Attach: 37x32 Screw-in - Euro screw pre-mounted
Thick: 0mm
UOM: EACH		 $1.34
Type: Die cast
Attach: 37x32 Screw-in - Euro screw pre-mounted
Thick: 2mm
UOM: EACH		 $1.38
Type: Die cast
Attach: 37x32 Screw-in - Euro screw pre-mounted
Thick: 3mm
UOM: EACH		 $1.41
Type: Die cast
Attach: 37x32 Expansion dowels 5mm
Thick: 0mm
UOM: EACH		 $1.49
